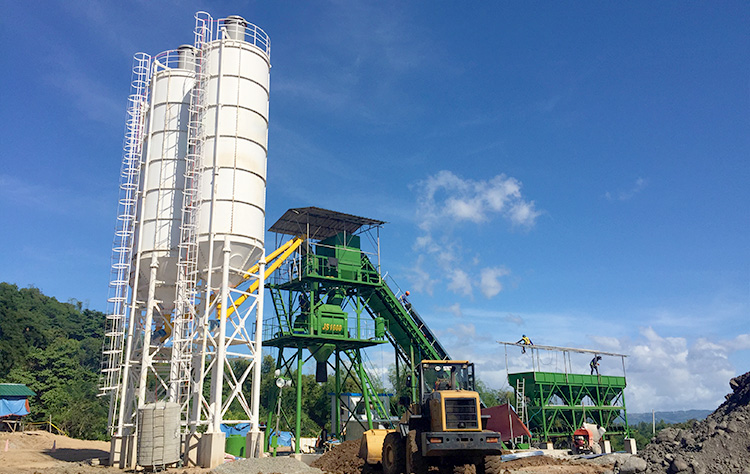

HZS60 Stationary Concrete Batching Plant
Specifications:
| Productivity (m3/h) | 60 |
| Type of Mixer | JS1000 |
| Max. Aggregate Diameter (mm) | 80 |
| Capacity of Aggregate Bin | 3*13m3 |
| Aggregate Conveying Mode | Lift Hopper |
| Aggregate Weighing Precision | 3000kg±2% |
| Cement Weighing Precision | 1500kg±1% |
| Water Weighing Precision | 600kg±2% |
| Fly Ash Weighing Precision | 600kg±1% |
| Additive Weighing Precision | 50kg±2% |
| General Power (kw) | 80 |
| Total Weight (T) | 50 |
| Outline Dimension (L*W*H) | 25*10*19.4 |
| Discharging Height (m) | 4.1 |
| Control Mode | Full/semi-auto batching, manual operation |
| Powder Silos (for customers choice) | The capacity and number of silos as well as the configuration vary with different demands |
| Screw Conveyors (for customers choice) | Usually, φ273mm screw conveyors are used. |
Advantages:
1.Equipped with JS1000 concrete mixer, the plant boasts excellent mixing quality and high efficiency;
2.High measuring precision, stable material conveying, thorough mixing and quick discharging;The cement is store in cement silo and feeding by screw conveyor.The water supply system is composed by water tank,water pump and water weighing system;
3.Automatic control, semi-auto or hand control;
4.Advanced components like mixer, silo, screw conveyor, feeding system and weighing system; Easy installation or dismantlement.
