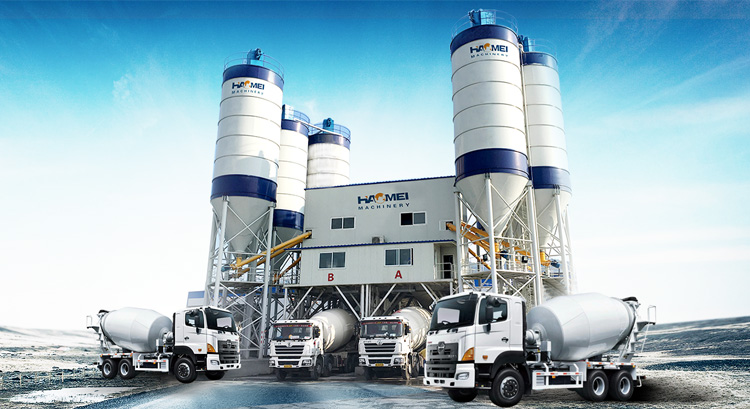

HZS180 Stationary Concrete Batching Plant
Specifications:
| Productivity (m3/h) | 180 |
| Type of Mixer | JS3000 |
| Discharging Height (m) | 4.0 |
| Work Cycling Time (s) | 60 |
| Dimensions (m3) | 43.5*24*18.7 |
| Total Power (kw) | 260 |
| Batching Machine Model | PLD4800 |
| Air Compressor | 1.8-7 |
| Nominal Displacement (m3/min) | 1.67 |
| Rated Discharging Pressure (pa) | 0.8 |
| Cement Measurement | ±1% |
| Water Measuring Accuracy (kg) | ±1% |
Advantages:
1.Mixer of forced double-horizontal shafts can deal with dry hard concrete, plastic concrete and concrete of other types;
2.Accumulative or separate metering methods can be used to measure aggregate through an electronic weighing apparatus. The machine may use either an elevator or belt conveyor to load the aggregate;
3.A weighing hopper is used to weigh cement, water and additives, to ensure that the measurement is accurate;
4.The machine incorporates parts of famous domestic and international brands;
5.Schneider electric parts and Siemens PLC are adopted in our concrete mixing plant to ensure the reliable performance and high production efficiency.
