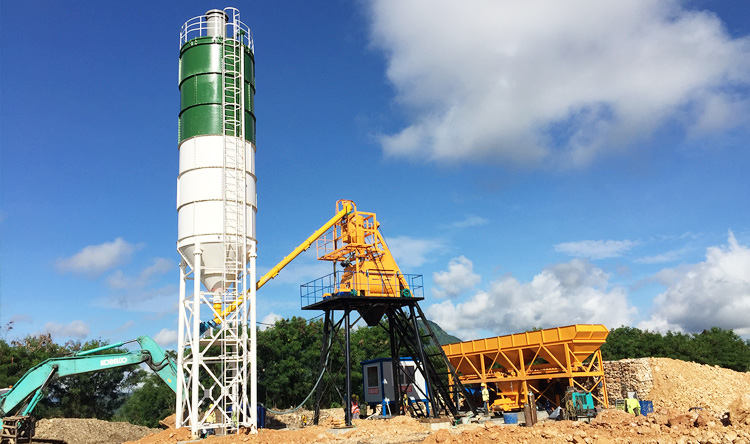

HZS50 Stationary Concrete Batching Plant
Specifications:
| Productivity (m3/h) | 50 |
| Type of Mixer | JS1000 |
| Mixing Volume (L) | 1000 |
| Feeding Way | Skip Hopper (Bucket Type) |
| Discharge Height (m) | 3.8 |
| Aggregate Bins | 3/4 |
| Aggregate Weighing Range (kg) | 1000 |
| Cement Weighing Range (kg) | 600 |
| Max. Aggregate Size (mm) | 80/60 |
| Total Power (kw) | 64.8 |
| Total Weight (T) | 18 |
Advantages:
1.Equipped with JS1000 concrete mixer, the plant boasts excellent mixing quality and high efficiency;
2.High measuring precision, stable material conveying, thorough mixing and quick discharging;The cement is store in cement silo and feeding by screw conveyor.The water supply system is composed by water tank,water pump and water weighing system;
3.Automatic control, semi-auto or hand control;
4.Advanced components like mixer, silo, screw conveyor, feeding system and weighing system; Easy installation or dismantlement.
